A Closer Look at PCB Traces

By Pi Zhang, Karl Morant | Jul 13, 2016

Introduction

Waterloo, Ontario, July 2016. A frequently asked question during Printed Circuit Board (PCB) layout review meetings is, “Are 50-ohm traces being used for the digital signals in this PCB layout?” Often the answer to this question is “yes”. However when making decisions that balance cost, performance, and manufacturability the correct answer can also be “no” or “not for all the digital signals”. Alternative approaches can include focusing on the “controlled impedance” of PCB transmission lines and/or using other trace-impedance values.

Let us examine a layer-stack design and see how the PCB trace width affects layer count (cost) and trace impedance (performance). In Figure 1, routing channels of the same width are shown on a signal layer for three PCB transmission lines: a 100-ohm differential pair, a 50-ohm and 60-ohm single-ended.

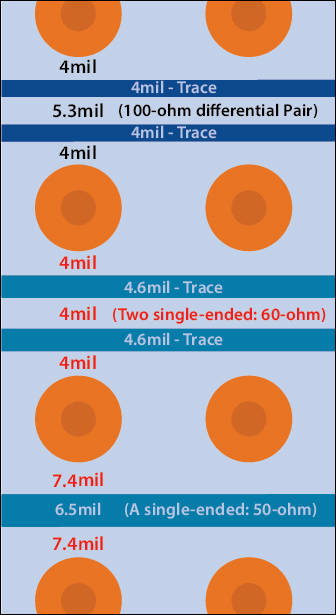

Figure 1: Routing channels shown on signal layer
Figure 1: Routing channels of the
same width are shown on a signal l
ayer for three PCB transmission lines
for a 100-ohm differential pair,
a 50-ohm and 60-ohm single-ended



The 100-ohm differential-pair is usually determined prior to the single-ended and should be fitted in the routing channel (between the vias) without discontinuities because they are usually for higher speed digital signals. Once the trace width and spacing of the 100-ohm differential-pair have been designed, the trace width for 50-ohm or 60-ohm single-ended on the same layer is usually determined accordingly. Changing the trace width alone for the single-ended traces will lead to different trace impedance. The trace routing yield per channel is:

  • Right: One 100-ohm differential-pair with 4mil trace / 5.5mil space.
  • Middle: Two 60-ohm traces for single-ended with 4mil trace / 4mil space.
  • Left: One 50-ohm trace for single-ended with 6.5mil trace / 7.4mil space.

Note: This example assumes that the minimum trace width and spacing are 4mils.

In this case, the engineer needs to make trade-off decisions on using either 50-ohm traces, which use up more PCB space and possibly more layers, or 60-ohm traces which use up less PCB space and possibly less PCB layers.



Using IC Reference Designs

The reference designs and recommendations in the documents provided by IC manufacturers are often used as starting points for schematics and PCB layouts in board-level hardware designs.

The techniques adopted for designing high-speed digital interconnects in these documents were most likely re-used in the designs for specific end-products. For example, the decision to use a memory interface without termination could have been determined due to the large operating margins of the memory in the reference schematic. However, for cost savings, the design engineer may choose alternate devices with different I/O buffer characteristics from those used in the reference design. The engineer would then need to decide if the non-terminated memory interface should remain in the new design.

Reference designs are an essential part of making PCB design decisions. However, it is important to have a deep understanding of the principles and limitations behind the techniques being applied in the reference designs. Only then can optimal design trade-off decisions be made.



PCB Traces and PCB Transmission Lines (PCB TL)

When characterizing the PCB traces for digital signals in a PCB design, the followings should be taken into account:

  • Rise-time (tr )/fall-time of the digital driver, and slew-rate-control if any
  • Output impedance (Zo), and drive-strength-control of an output buffer if any
  • Flight-time in the PCB trace (tpcb)
  • Internal terminations for both driver and receiver
  • External terminations at both driver and receiver
Figure 2: PCB Traces and PCB Transmission Lines



The table below shows possible types of PCB traces interconnecting a digital driver and receiver (referring to Figure 2)



Electrically long (tpcb > 0.2x tr) PCB traces are acting as a PCB transmission line (PCB TL). Electrically short traces (tpcb < 0.2 x tr) are acting as a lumped LC circuit. The impedance-controlled trace (PCB TL) should be specified in a PCB design file to ensure that the PCB is fabricated with the trace impedance within the specified values. The PCB fabricator can also measure the actual trace impedance and generate a report for you upon request.

Flight-time tpcb in the PCB traces is the only parameter associated with PCB layout among the parameters involved in determining whether or not a PCB trace is a PCB transmission line. It is important in a product design team to have consensus that it is the task of both the electrical design engineer and PCB designer to design appropriate type of PCB transmission lines for digital signals.

The table below shows what values the PCB TL impedance should be in order to match the terminations (referring to Figure 2).



Note 1: Wherever possible, Zpcb-TL can be set equal to Zo so that there is no reflection back from driver to receiver.
Note 2: Assuming a high impedance input.
Note 3: Zo = Driver’s Output Impedance, R= End Termination ResistanceRs = Source Termination Resistance

Impedance-matched PCB TLs are the best choice for signal integrity (SI) performance because they eliminate signal reflections between the driver and the receiver. However, termination resistors on PCB TLs increase the BOM cost and the power consumption when end-termination (RT) is used. End-termination (RT) is suitable for multi-drop links, and source-termination is a good choice for uni-directional signals, like clocks. When margins for logic voltage and timing are large enough, non-terminated PCB TLs are often seen in many digital interfaces.



PCB traces will behave differently depending on not only the length of the trace (or flight-time) but also the I/O characteristics of digital driver and receiver and the terminations employed. PCB trace width is a factor in determining both the PCB trace impedance and the yield of trace routing channel – low yield of the routing channel demands high PCB layer count. There should be options for choosing the impedance of PCB transmission lines, and a 50-ohm trace (PCB TL) is not the only choice. While the IC manufacturer’s reference designs are essential, they should not be considered as the “best practices” for the PCB design of a new product. This is because the process of determining what is “best” is one of making design trade-off decisions that balance performance, cost and manufacturability. It is an important step to characterize the PCB traces for each digital interface presented in a design accordingly in order to optimize the entire PCB design and achieve high signal integrity.


References: Johnson, H. (1993). High Speed Digital Design: A Handbook of Black Magic. New Jersey: Pearson Education.
